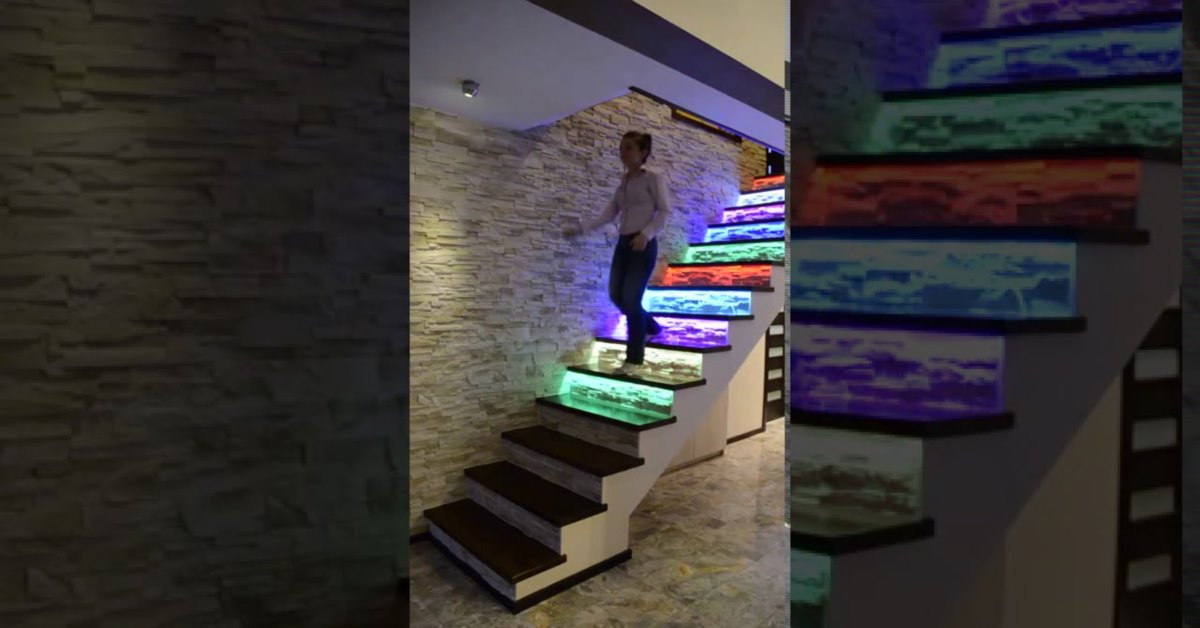

Lighting of the stairs – RGB – independent control of each channel

Going up or down a staircase can be a hard undertaking at night, particularly for youngsters and aged people. This Automatic LED Staircase Light circuit lighting up LEDs, one at each end of the staircase, for a couple of minutes. The LEDs switch off automatically thereafter. The lights may be switched on from both stop.

for watch detailed video about Lighting of the stairs – RGB – independent control of each channel, see below. for getting daily updates follow our facebook page and click see first option in following button. if you interested this. give this post to your friends and relatives.for more videos, subscribe now:illuminationspl

Circuit and running

The circuit diagram of staircase light is proven in Fig. 1. It is constructed around transistors BC547 (T1) and BC557 (T2), 5mm white LEDs (LED1 and LED2), and few different additives.

When switch S1 or S2 is pressed, capacitor C1 fees via resistor R1. This raises voltage at the base of transistor T1, which enters into saturation. Meanwhile, capacitor C1 starts discharging thru resistors R2 and R3 and the bottom-emitter terminals of T1. Now, due to the fact that T1 is conducting, the base of transistor T2 receives grounded, and for this reason it additionally starts conducting. This reasons present day to go with the flow through transistor T2 and LED1 and LED2 activate.
